TS Universal 2-Inch Field Flattener for Refractors

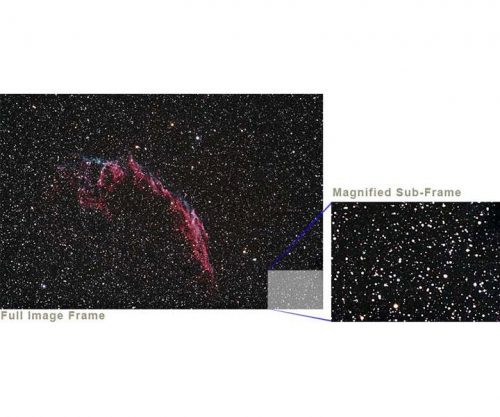

The TS Universal 2-Inch Field Flattener for Refractors from f4 to f9 is a flat field imaging corrector for almost ALL refractors with a 2″ focuser, producing pinpoint stars from centre to edge!
The flattener has an optical diameter of 45.5 mm and offers reduced vignetting compared to narrower T2 types. Fitting is M48 at both ends.
For most refractors the optimum back focus distance is around 109mm from the M48 thread to the camera’s sensor.
Experience has shown that the flattener has a large tolerance for deviations from the ideal distance. A 5% deviation does not cause any deterioration of the image quality with an APS-sized sensor.
For smaller sensors somewhat larger deviations may be acceptable, but please bear in mind that for the best resolution the distance should be set as precisely as possible.
For refractors with a fast focal ratio we recommend a longer back focus distance of approximately 120-123mm.
Please ask if unsure about adaptation and spacing!
Item Code – TSFlat2
