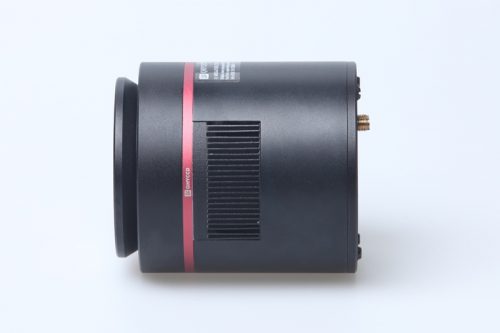

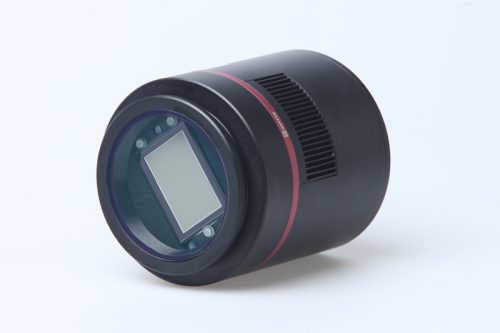

The QHY11 Mono is a small full frame size 36*24mm cooled CCD camera.
It uses the TrueSense KAI11002 CCD sensor and offers a big image circle.
The 11mega pixels and 9um pixel size offer you very sharp star and wide FOV area in many telescopes.
QHY11 has typical -45C delta T from ambient.
This temperature exceeds most of other cameras based KAI11002 or KAI11000. You can get lower thermal noise and less hot pixels with this camera.
QHY11’s small round case design allow it be installed in the the Hyperstar System or in the primary focus plane. With more and more new big image circle Schmidt camera come out,  QHY11 is your right choice for such systems.

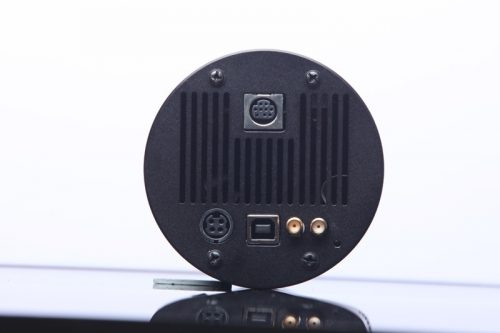

QHY11 also supply a cable clip which can make the contract of the USB port and power socket more solid.
                  Â
The QHY11 Colour is available for Special Order… please contact Bernard for details  😀
Main Features
Total pixel :4072*2720
Active pixels:4032*2688Â 11Mpixels
Pixel Size:Â Â 9.0um x 9.0um squareÂ
36mm*24mm imager size
Readout noise: 12-14e-Â Â @1Mpixel/s
Preview Speed: 3Mpixel/s
Download Time: 15sec@Low Speed. 8sec@High Speed
Peak QE: 50%
FullWell: 55-60Ke-
Microlensing on chip
Progressive Scan
ABG: 1000X
16bit ADC with CDS and Preamp
USB2.0 High Speed interface
2-Stage TEC cooling
Build in 32MByte SDRAM buffer
Build in temp sensor
DC102 DC adapter & TEC Controller Supported
Image Gallery by Terry Hancock
Â
Terry Hancock is using QHY11 to capture many magnificent wide-angle deep sky images.
These images show perfectly the complexity of nebulea and galaxies in great detail.
Terry’s works have created a sight-seeing tour of the deep space, which you can see through his telescope and camera .
Click the images to see the big breakthrough size image.
To see more of his photographic works, just follow the QHYCCD Flickr group at https://www.flickr.com/photos/terryhancock
The Andromeda Galaxy M31 2014 Terry Hancock
The Gamma Cyni Region 3 Panel Mosaic 2015 Terry Hancock
 NGC6914 and The Gamma Cygni Region 2015 Terry Hancock
Sadr and The Surrounding Gamma Cygni Nebula 2015 Terry Hancock
